Below is a portfolio of recent and past work

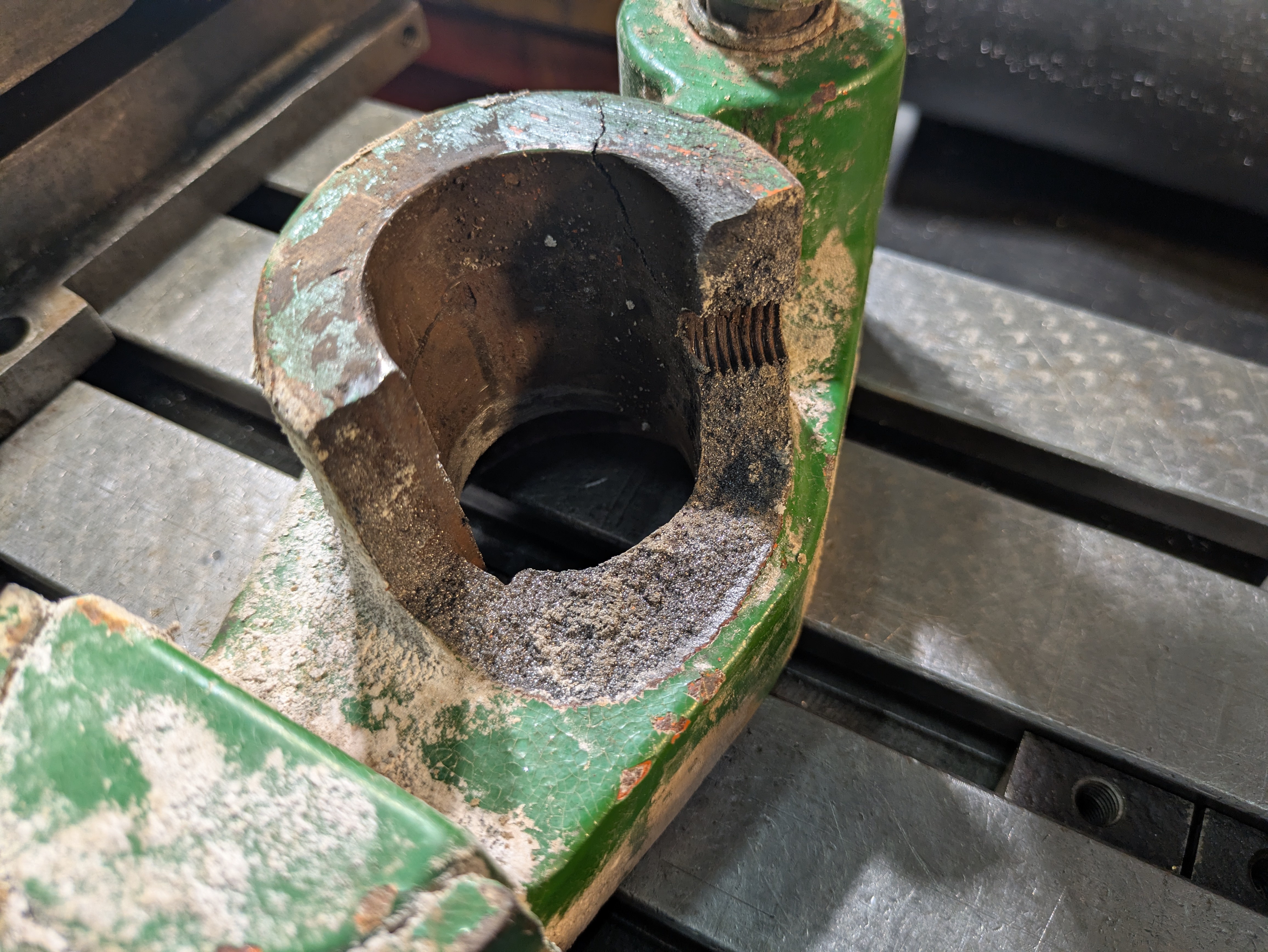

Bearcat 1101 Feed Mixer/Grinder - salvage repair/rebuild of pin clutch on tractor PTO input shaft. The original part fractured through the keyway and threaded fastener hole. Upon failure the key sheared and damage was compounded, fracturing the rest of the casting superstructure

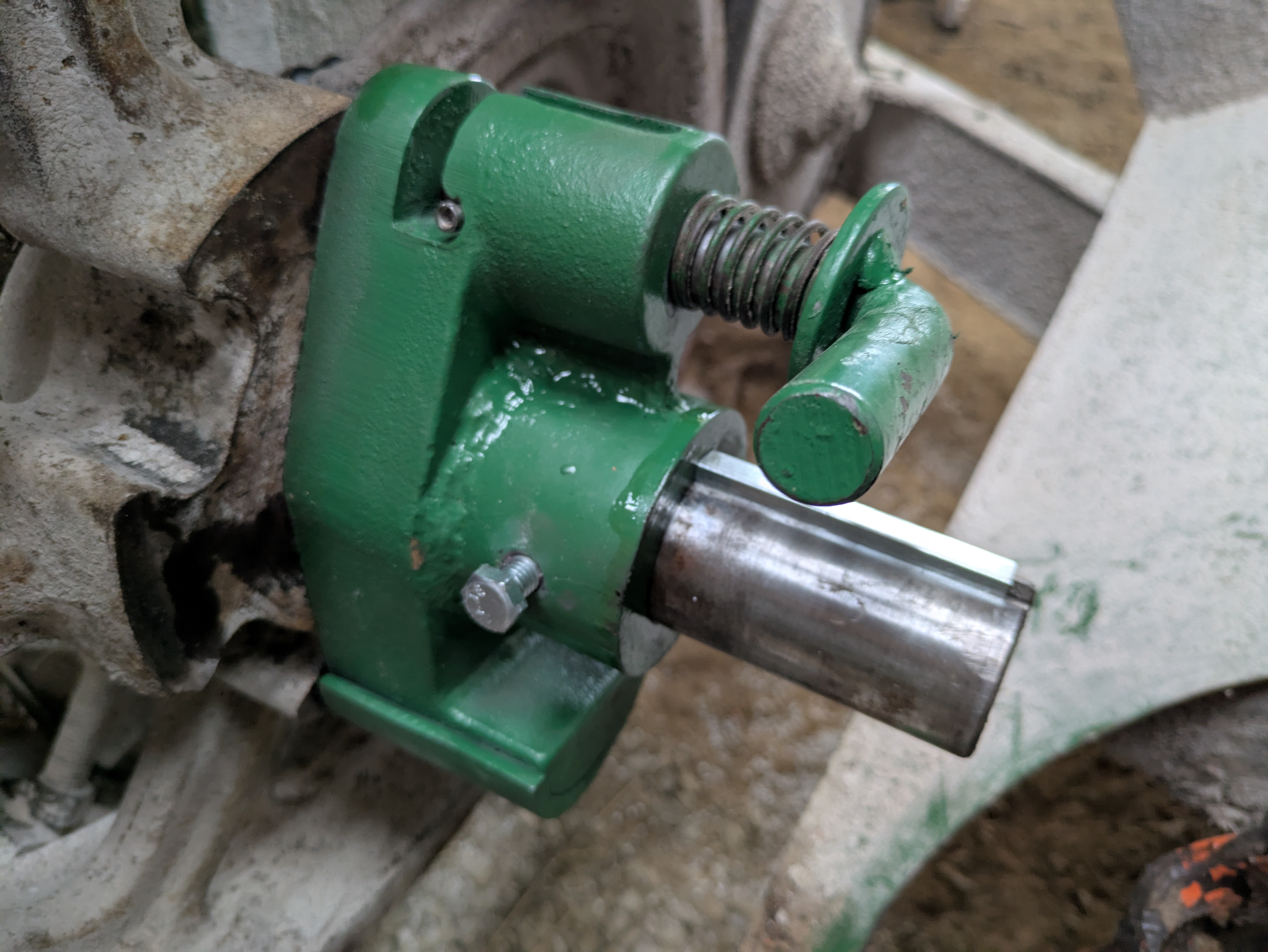

Salvage repair was performed by removing the damaged superstructure, milling flat; crack testing the remaining material. A repair sleeve was made and brazed in from above and below.

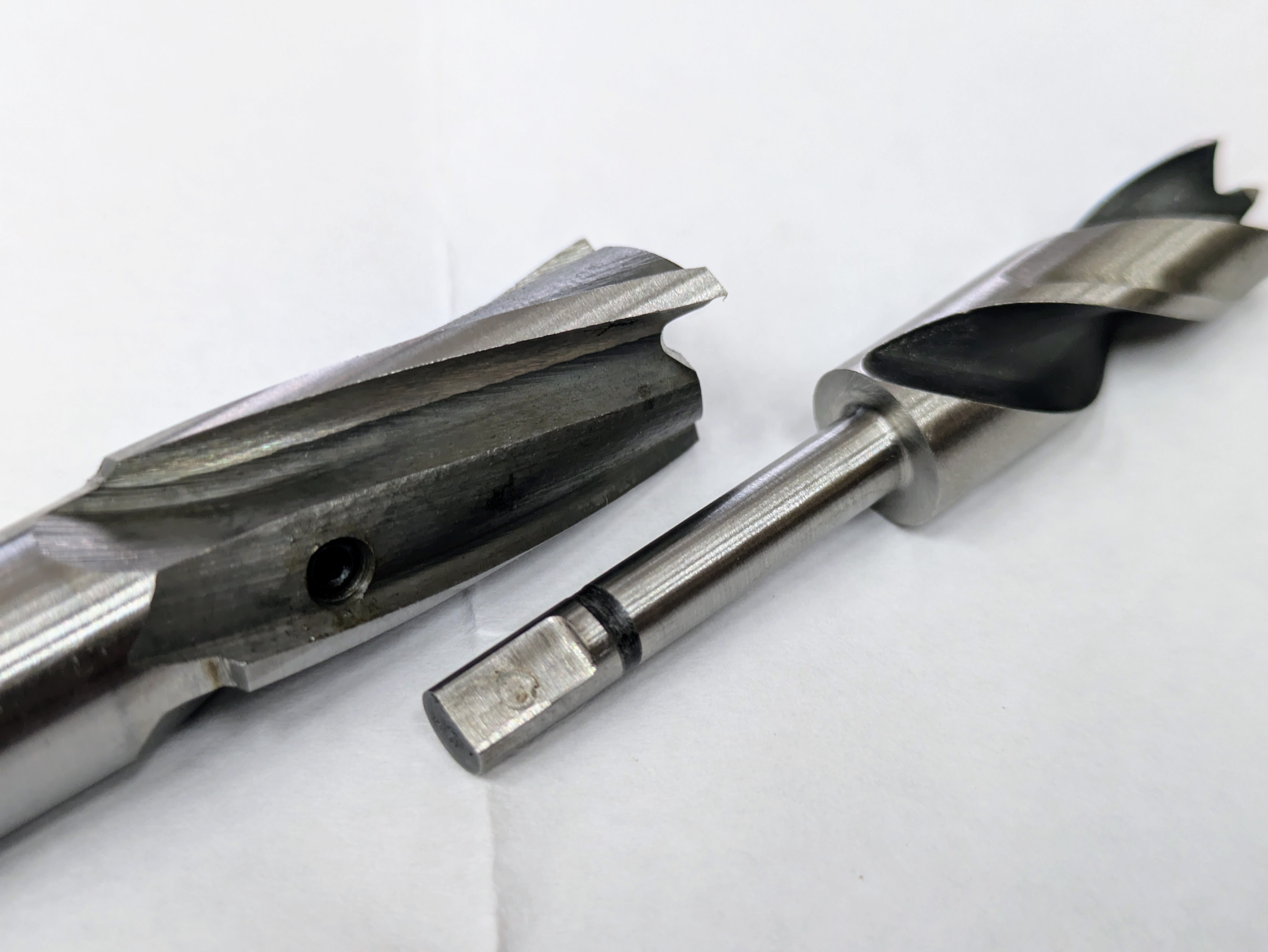

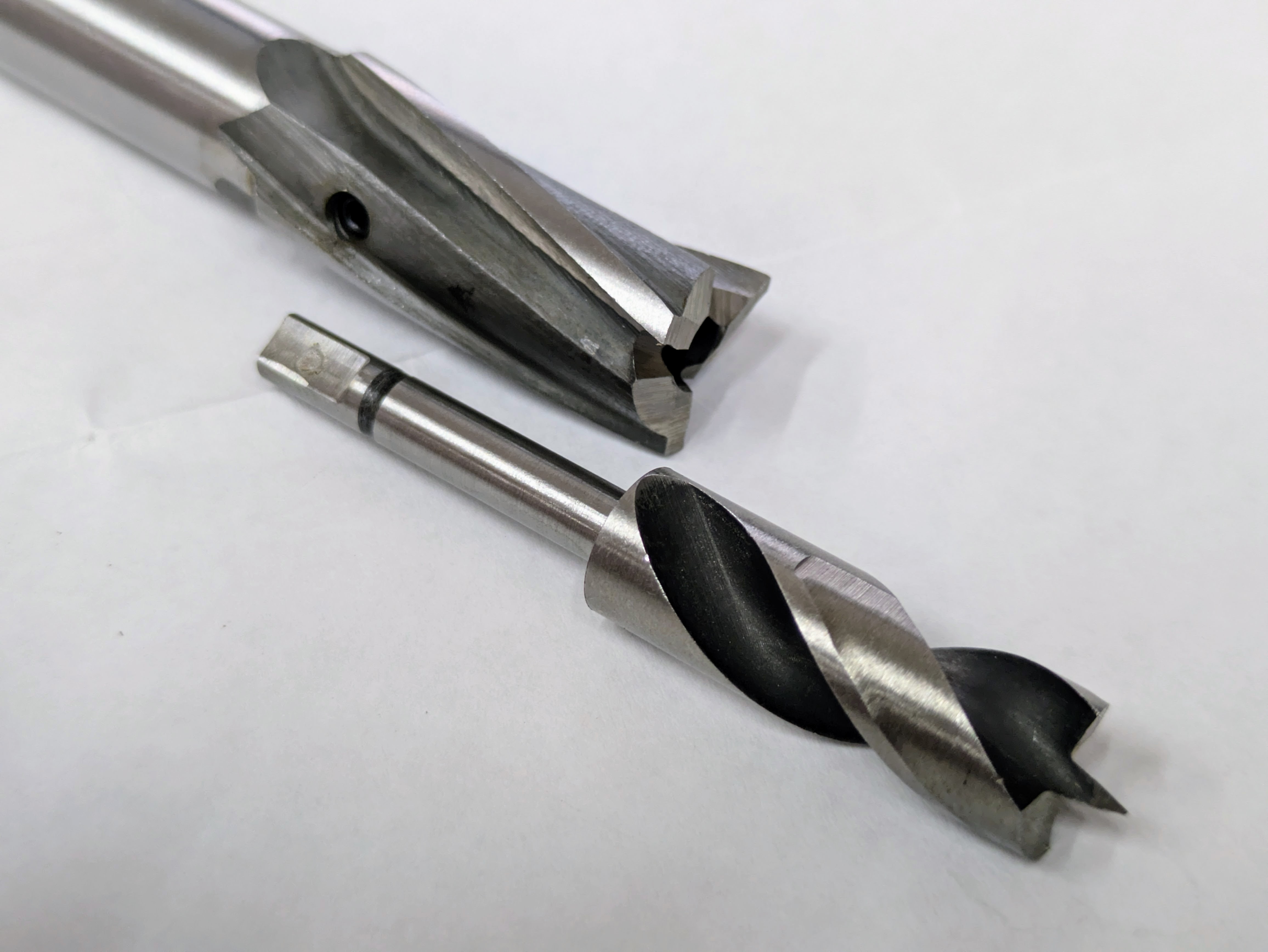

Custom twist drill solution - adapting a stub drill bit to act as a pilot for a counterbore. The stub bit started out with a 1/4" hex shank, and was ground down precisely to 3/16" for the pilot bore of the counterbore, with a flat for the retaining set screw.

This allows the customer to perform concentric operations in one setup, while preserving benefits of batch production

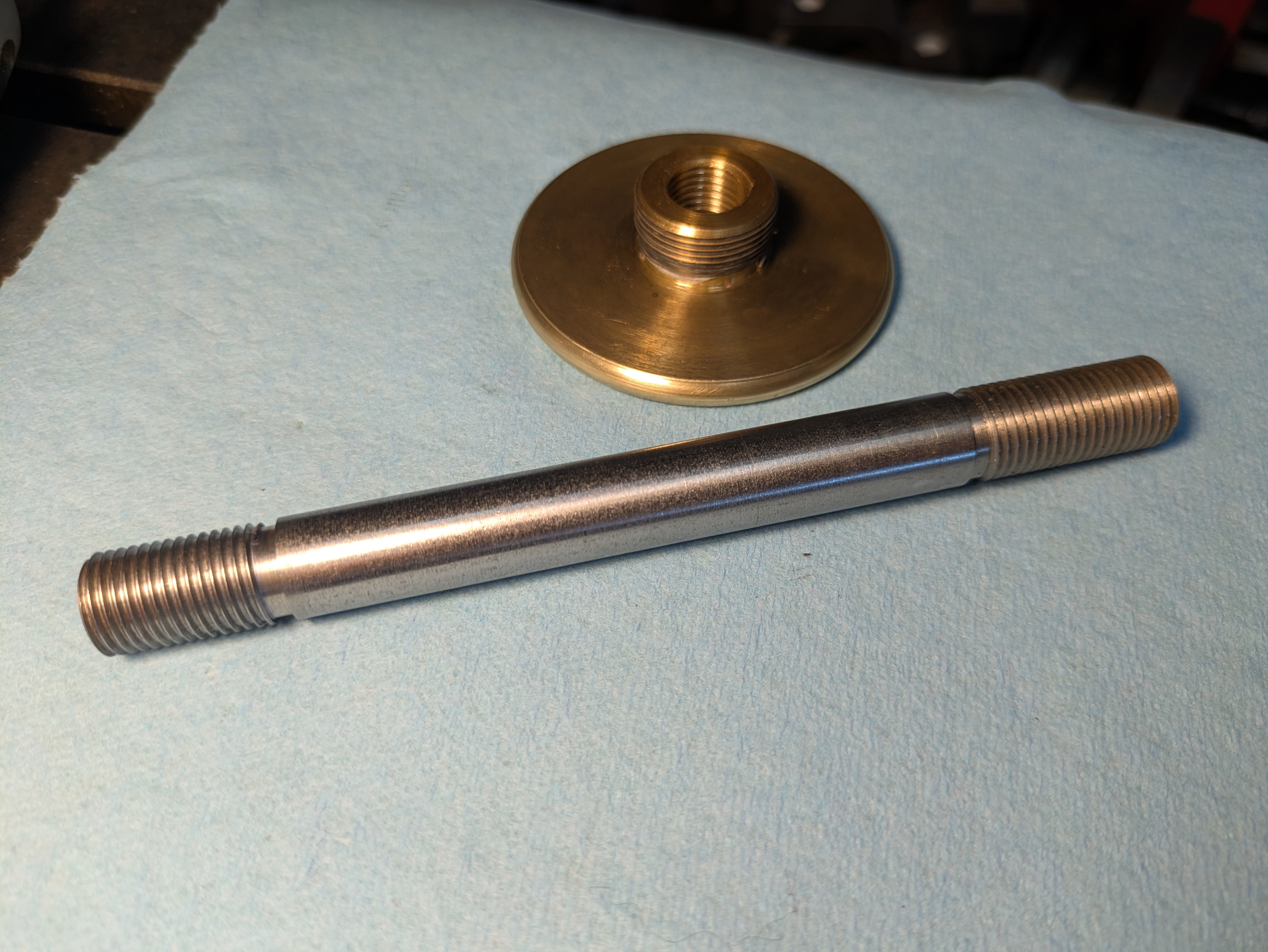

Custom lamp nipple to allow the owner's repair of an out-of-production lamp. M14x1.5 with geometry different from commercially-available parts.



Batch work, custom parts, custom flexture for slotting operation






Fabricated out-of-production John Deere part
AM133353 or M132730 tiller transport linkage arm - John Deere GT225/GT235/GT245/GX255 Tractor














Modified bearing pockets on wheelchair wheels for custom application





Custom axle shafts out of stainless and mild steel


Modified motorcycle handlebar risers for custom build


Bracket for lumber post in agricultural structure, fabricated and finished



Modified stainless steel turnbuckles for marine equipment

Reproduction guide pin

Removal of stripped+seized hardware from DIYer project


Removed+rebuilt end of linkage casting (zinc) which had broken from fatigue


Custom flanged bushing to repair wear in a linkage


Replacement bushing for wear in low-duty-cycle electric motor




Boring and installing replacement bearings for worn industrial cart wheels




Fabricated replacement guide rod and nut hardware for antique woodworking vise




Resurfacing the bearing small surface of a machine feed screw


Brackets for a custom agricultural structure (shipping container modification)


Braze repair on a batch of failed trowels




Re-pinned loose heads on outdoors equipment (non-life-safety)


Custom guide pulley/roller for marine usage (alumunum with grease passages for steel bearing hub)






Agricultural adapter bushing


Sealing washer for aging/repurposed industrial sprayer


Leak-tested, patched, pressure-tested industrial radiator after rodent debris damage


Custom guitar amplifier chassis modifications


Batch of custom fasteners (unique included head angle)


Adjustable anti-rattle support bushing for machine/material support

Machine table braze repair and pressed-in replacement hub


Replacement for 120-year-old proprietary fastener (unique diametmer+thread pitch combination)


Fabricated replacement trailer bearing cover (replacement not available for purchase)




Bored+sleeved cross-handle in machine pinion shaft


Thread repair on brass part
